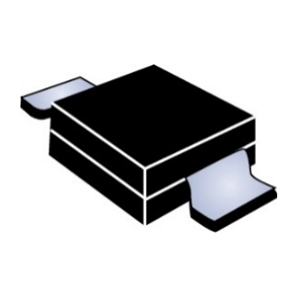

The JANPTX1N5629AUG from Microchip Technology is a Unidirectional Transient Voltage Suppressor (TVS) for protecting against transients from inductive switching environments, induced RF effects, or induced secondary lightning effects. It has a working voltage (VWM) range of 5-175 V with a working stand-off voltage of 5.8 V. This TVS diode features a breakdown voltage of over 7.14 V and a breakdown current of 10 A. It has a peak pulse current of 143 A and a standby current of 1000 A with a clamping voltage of 10.5 V. This MILPRF-19500/716-qualified TVS diode suppresses transients up to 1500 W at 10/1000 µs and clamps transients in less than 100 ps. It complies with moisture classification level 1 with no dry pack required per IPC/JEDEC J-STD-020. It is available in a surface-mount package that measures 7.11 x 6.22 x 2.80 mm and is ideal for protecting airborne avionics and electrical systems when low voltage is required.
