CVJ10F30

Download Datasheet Request Quote

Note : Your request will be directed to Toshiba.

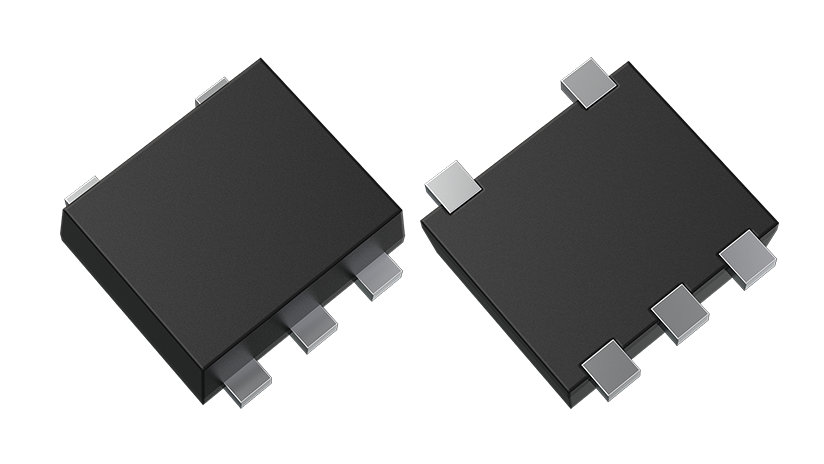

CVJ10F30 Image

The CVJ10F30 from Toshiba is a Power Diode with Forward Current 1 A, Forward Voltage 0.57 V, Reverse Current 50 uA, Reverse Voltage 30 V, Repetitive Peak Reverse Voltage 32 V. Tags: Surface Mount. More details for CVJ10F30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CVJ10F30
  • Manufacturer
    Toshiba
  • Description
    0.57 V, 1 A, Schottky Power Diode

General

  • Types of Diode
    Schottky Barrier Diode View all
  • Configuration of Diode
    Dual Diode View all
  • Technology
    Silicon View all
  • Forward Current
    1 A
  • Forward Voltage
    0.57 V
  • Reverse Current
    50 uA
  • Reverse Voltage
    30 V
  • Repetitive Peak Reverse Voltage
    32 V
  • Non-Repetitive Peak Forward Current
    5 A
  • Peak Reverse Voltage
    32 V
  • Industry
    Industrial, Commercial
  • RoHS Compliant
    Yes View all
  • Temperature operating range
    -55 to 125 Degree C
  • Reverse Breakdown Voltage
    30 V
  • Applications
    High current, Low VF, High-speed Switching.
  • Dimensions
    2.0 x 2.1 x 0.7 mm
  • Package Type
    Surface Mount View all
  • Package
    SOT-353F
  • Total Capacitance
    120 pf
