DIO20881SO8

Power Operational Amplifier by Dioo Microcircuits (125 more products)
Download Datasheet Request Quote

Note : Your request will be directed to Dioo Microcircuits.

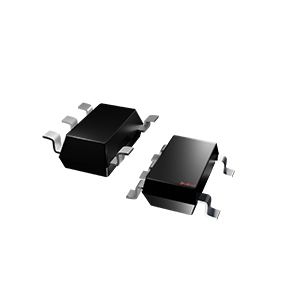

DIO20881SO8 Image

The DIO20881SO8 from Dioo Microcircuits is a Power Operational Amplifier with Supply Voltage 1.4 to 5.5 V, Input Offset Voltage ±3.5 mV, Input Bias Current 1 pA, Quiescent Current 0.6 uA, Input Offset Current 1 pA. Tags: Surface Mount, Low Power Op Amp. More details for DIO20881SO8 can be seen below.

Product Specifications

Product Details

  • Part Number
    DIO20881SO8
  • Manufacturer
    Dioo Microcircuits
  • Description
    1.4 to 5.5 V, 0.6 uA, Power operational Amplifier

General

  • Type
    Low Power Op Amp
  • Number of Channel
    Single
  • Supply Voltage
    1.4 to 5.5 V
  • Input Offset Voltage
    ±3.5 mV
  • Input Bias Current
    1 pA
  • Quiescent Current
    0.6 uA
  • Input Offset Current
    1 pA
  • Input Offset Voltage Drift
    ±5 µV/°C
  • Input Voltage Noise
    190 nV/vHz
  • Output Voltage
    0.008 to 4.992 V
  • Output Current
    30 mA
  • Open Loop Gain
    70 to 87 dB
  • Gain Bandwidth
    14 kHz
  • CMRR
    100 dB
  • PSRR
    100 dB
  • Slew Rate
    3.5 V/ms
  • Operating Temperature
    -40 to 125 Degree C
  • Storage Temperature
    -65 to 150 Degree C
  • RoHS Compliance
    Yes
  • Industry
    Industrial, Commercial
  • Application
    Portable Equipment, Active Filters, Data Acquisition, Test Equipment, Broadband Communication, Process Control, Audio and Video Processing
  • Package
    SOIC-8
  • Package Type
    Surface Mount
