eS1500i 48V e-Drive System

Electric Axle by Dana Limited

Note : Your request will be directed to Dana Limited.

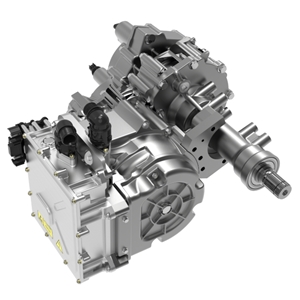

eS1500i 48V e-Drive System Image

The eS1500i 48V e-Drive System from Dana Limited is an Electric Axle that transforms passenger cars and light CUVs with all-wheel drive capability. It has a peak output torque of 1500 Nm and a top speed of 25 kph at peak torque. This e-Axle has a maximum connected speed of up to 115 kph, a maximum speed of 17,500 rpm and a maximum efficiency of 97.5%. It features a better hill climb torque and a startup assist.

Product Specifications

Product Details

  • Part Number
    eS1500i 48V e-Drive System
  • Manufacturer
    Dana Limited
  • Description
    e-Axle for Passenger Cars and Light CUVs

General

  • Operating Voltage
    48 V
  • Output Speed
    17500 rpm
  • Continuous Power
    18 kW
  • Peak Power
    27 kW
  • Torque
    55 to 82 Nm
  • Application
    Electric Vehicle, Passenger Car
  • Note
    Peak Output Torque :- 1,500 Nm, Ratio :- 18.31:1, Speed :-115 kph, Efficiency :-97.5 %
