FN351H-16-29

EMI / EMC Filter by Schaffner (531 more products)

Note : Your request will be directed to Schaffner.

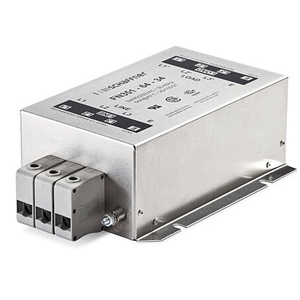

FN351H-16-29 Image

The FN351H-16-29 from Schaffner is a Three-Phase EMC Filter that has been specifically designed for industrial inverters and motor drives. It has an AC voltage rating of 300/520 V and a current rating of 16 A. This power line filter offers a wide common and differential-mode attenuation range to protect against high interference levels. It has solid, touch-safe filter terminals that provide overall equipment safety. This IP20-rated power filter is available in a chassis-mount package that measures 200 x 65 mm and is ideal for use in three-phase motor drives, inverters, converters, industrial automation equipment, UPS, SMPS, and general-purpose three-phase filtering applications.

Product Specifications

Product Details

  • Part Number
    FN351H-16-29
  • Manufacturer
    Schaffner
  • Description
    16 A Three-Phase EMC Filter for Power Conversion Applications

General

  • Type of Filters
    Three Phase EMC Filter
  • Voltage Rating
    300 to 520 V
  • Current Rating
    16 A
  • Leakage Current
    0.3 mA
  • RoHS Compliant
    Yes
  • Temperature operating range
    -25 to 100 Degree C
  • Package Type
    Chassis Mount
  • Dimension
    200 x 65 mm
  • Applications
    Three-phase motor drives, Inverters, Converters, Industrial automation equipment, UPS, SMPS, and general-purpose three-phase filtering applications

Technical Documents
