6609070-8

Note : Your request will be directed to TE Connectivity.

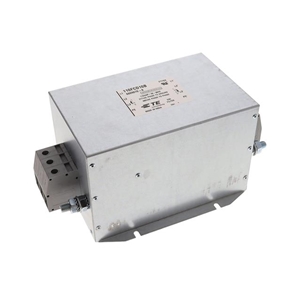

6609070-8 Image

The 6609070-8 from TE Connectivity is a Three-Phase EMI/EMC Filter that has been designed to effectively address EMI and EMC issues in power line applications. It has a voltage rating of up to 480 V, a current rating of 110 A, and a leakage current of less than 0.62 mA. This filter features convenient terminal block input and output termination types, offering easy integration and flexibility in various setups. It excels at providing efficient filtering and meeting stringent industry requirements. This RoHS-compliant filter is available in the chassis-mount package.

Product Specifications

Product Details

  • Part Number
    6609070-8
  • Manufacturer
    TE Connectivity
  • Description
    480 V Three-Phase EMI/EMC Filter

General

  • Type of Filters
    Three Phase EMI Filter View all
  • Voltage Rating
    480 V
  • Current Rating
    110 A
  • Leakage Current
    0.62 mA
  • RoHS Compliant
  • Temperature operating range
    -10 to 40 Degree C
  • Package Type
    Chassis Mount View all
  • Applications
    Effectively address EMI and EMC issues in power line applications
