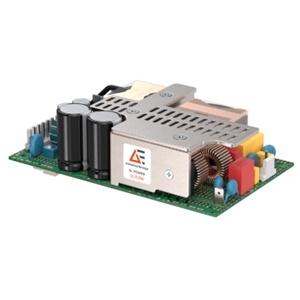

SLB350 Series Image

The SLB350 Series from Advanced Energy Industries are Industrial Grade AC-DC Power Supplies that converts an AC input voltage of 85-264 V to a DC output voltage of 12-56 V. They deliver an output power of up to 200 W and have an efficiency of more than 90%. These single-output converters provide an input-output isolation voltage of up to 4000 VAC and have a switching frequency of over 100 kHz. They benefit from protection features such as output overvoltage protection, short circuit protection, thermal and overload protection. These RoHS-compliant converters are available in open-frame packages that measure 3 x 5 x 1.5 inches.

Product Specifications

View similar products

Product Details

  • Part Number
    SLB350 Series
  • Manufacturer
    Advanced Energy Industries
  • Description
    200 W Industrial Grade AC-DC Power Supply

General

  • Types of Converter
    Uncontrolled Rectifier View all
  • Configuration
    Isolated View all
  • Number of Output
    Single View all
  • AC Input Voltage
    85 to 264 V
  • AC Input Current
    2 to 4 A
  • DC Output Voltage
    12 to 56 V
  • DC Output Current
    6.25 to 25 A
  • DC Output Power
    300 to 350 W
  • Switching Frequency
    50 to 200 kHz
  • Temperature operating range
    -10 to 70 Degree C
  • RoHS Compliant
  • Industry
    Industrial, Commercial
  • Dimensions
    3 x 5 x 1.5 Inches
  • Package Type
    Open Frame View all
  • Note
    With Air Flow
