89451001

Download Datasheet Request Quote

Note : Your request will be directed to Crouzet.

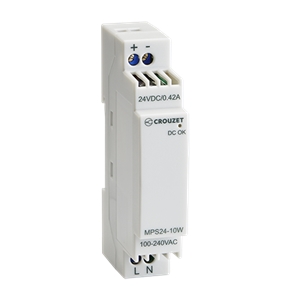

89451001 Image

The 89451001 from Crouzet is a AC to DC Converter with AC Input Voltage 100 to 240 V, AC Input Current 120 to 180 mA, DC Output Voltage 24 V, DC Output Current 0.42 A, DC Output Power 10 W. Tags: DIN Rail Mount. More details for 89451001 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    89451001
  • Manufacturer
    Crouzet
  • Description
    24 V, Single Phase, Uncontrolled Rectifier AC to DC Converter

General

  • Types of Converter
    Uncontrolled Rectifier View all
  • Configuration
    Isolated View all
  • Number of Output
    Single View all
  • AC Input Voltage
    100 to 240 V
  • AC Input Current
    120 to 180 mA
  • DC Output Voltage
    24 V
  • DC Output Current
    0.42 A
  • DC Output Power
    10 W
  • Line Regulation Voltage
    1%
  • Load Regulation Voltage
    1%
  • Over Voltage Protection
    29 to 35 V
  • Temperature operating range
    -20 to 71 degree C
  • RoHS Compliant
    Yes View all
  • Industry
    Commercial, Industrial
  • Dimensions
    18 x 91 x 55.6 mm
  • Package Type
    DIN Rail Mount View all
