IOB-05 Series

Note : Your request will be directed to Mean Well.

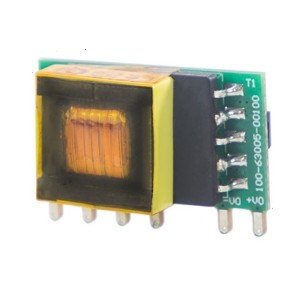

IOB-05 Series Image

The IOB-05 Series from Mean Well are AC-DC Power Supplies that convert AC input voltages of 85-305 V to nominal DC output voltages of 3.3-24 V. They also accept input DC voltages of 100-430 V. These AC-DC Converters deliver output power of 5 W and have an efficiency of up to 81%. They can operate from -40°C to +85°C using natural air convection and offer exceptionally low no-load power consumption. These CE/UKCA-certified converters feature built-in safeguards against short circuit, overload, overvoltage, and overtemperature conditions and come with a dependable 3-year warranty. They are available in through-hole packages that measure 26.4 x 14.73 x 11 mm and are suitable for industrial electrical equipment, mechanical equipment, factory automation equipment, handheld electronic devices, smart home, and industrial control applications.

Product Specifications

View similar products

Product Details

  • Part Number
    IOB-05 Series
  • Manufacturer
    Mean Well
  • Description
    5 W AC-DC Power Supplies

General

  • Types of Converter
    Uncontrolled Rectifier View all
  • Configuration
    Isolated View all
  • Number of Output
    Single View all
  • AC Input Voltage
    85 to 305 V
  • AC Input Current
    0.1 to 0.2 A
  • DC Input Voltage
    100 to 430 V
  • DC Output Voltage
    3.3 to 24 V
  • DC Output Current
    0.21 to 1 A
  • DC Output Power
    3.3 to 5.1 W
  • Line Regulation Voltage
    ±1.5%
  • Load Regulation Voltage
    ±3%
  • Temperature operating range
    -40 to 85 Degree C
  • Industry
    Military, Industrial, Commercial
  • Dimensions
    26.4 x 14.73 x 11 mm
  • Applications
    Industrial electrical equipment, Mechanical equipment, Factory automation equipment, Hand held electronic device, Smart Home, Industrial Control
  • Package Type
    PCB Mount View all
