NSP-320 Series

Download Datasheet Request Quote

Note : Your request will be directed to Mean Well.

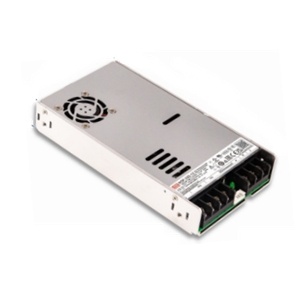

NSP-320 Series Image

The NSP-320 Series from Mean Well is a AC to DC Converter with AC Input Voltage 85 to 305 V, AC Input Current 1.4 to 3.2 A, DC Input Voltage 120 to 431 V, DC Output Voltage 5 to 60 V, DC Output Current 5.4 to 60 A. Tags: Chassis Mount. More details for NSP-320 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    NSP-320 Series
  • Manufacturer
    Mean Well
  • Description
    5 to 60 V, 5.4 to 60 A, 300 to 324 W, AC to DC Converter

General

  • Types of Converter
    Uncontrolled Rectifier View all
  • Configuration
    Isolated View all
  • Number of Output
    Single View all
  • AC Input Voltage
    85 to 305 V
  • AC Input Current
    1.4 to 3.2 A
  • DC Input Voltage
    120 to 431 V
  • DC Output Voltage
    5 to 60 V
  • DC Output Current
    5.4 to 60 A
  • DC Output Power
    300 to 324 W
  • Line Regulation Voltage
    ±0.5%
  • Load Regulation Voltage
    ±0.5%
  • Temperature operating range
    -40 to 85 Degree C
  • RoHS Compliant
    Yes View all
  • Industry
    Medical, Military, Industrial, Commercial
  • Dimensions
    179 x 99 x 30 mm
  • Package Type
    Chassis Mount View all

Technical Documents
View details on the manufacturer's website
