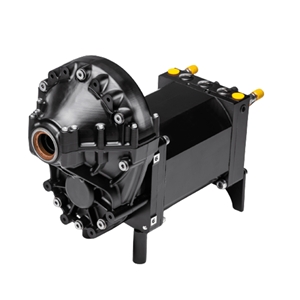

HPD 128 L Image

The HPD 128 L from Swindon Powertrain is an Inline Electric Powertrain designed specifically for use in both rear & all-wheel drive electric vehicles. It delivers a peak power of 128 kW at 10300 rpm and offers a continuous power of 80 kW. This e-axle generates a maximum motor torque of 136 Nm and has an efficiency of up to 97% at 8000 rpm. It features flexible transmission ratios of 3.368:1 to 4.588:1 and provides a maximum output torque of 458 Nm or 624 Nm with a speed of up to 4454 rpm. This e-axle weighs 42 kg (dry) and measures 342 x 246 x 508 mm. It is suitable for cars, classic cars, commercial vehicles and boats.

Product Specifications

Product Details

  • Part Number
    HPD 128 L
  • Manufacturer
    Swindon Powertrain
  • Description
    128 kW Inline Electric Powertrain

General

  • Motor Type
    Permanent Magnet Synchronous Motor View all
  • Output Speed
    8000 to 15000 rpm
  • Continuous Power
    80000 W
  • Torque
    136 Nm
  • Application
    Cars, Commercial Vehicles, Classic Cars, Boats
  • Weight
    42 kg
  • Dimension
    342 x 246 x 508 mm
  • Note
    Efficiency :- 97%, E-Transmission Oil Capacity :- 0.5 L, Output Torque :- 458 to 624 Nm
