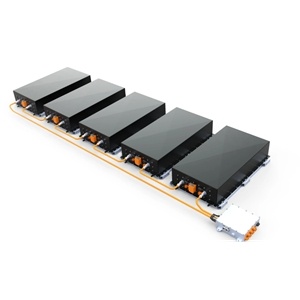

The ESS8A.155.36 from Elinta Motors is a LFP Battery System designed for medium to heavy-duty commercial vehicle applications. It is built with advanced LiFePO4 chemistry and has exceptional durability with over 6000 charge cycles, ensuring long operational life and cost efficiency. This EV battery features a nominal voltage of 155 V and a capacity of 230 Ah, providing a total energy output of 36 kWh (34 kWh usable). It supports a continuous charge/discharge power of 45 kW and a peak discharge power of 70 kW, with a high current capability of up to 400 A. This EV battery incorporates liquid cooling and an integrated heater for effective thermal management across varying operating conditions. It features an IP6K9K-rated enclosure and a rugged mechanical design tested up to 12G impact, ensuring reliability in demanding environments.

This EV battery includes advanced features such as CAN bus communication for control and diagnostics, dual-range 500 A current sensing, and insulation resistance monitoring. It consists of 3 modules with 16 cells each (48 cells total) and is equipped with a 350 A MSD fuse for enhanced safety. This EV battery supports system expansion from 144 kWh up to 722 kWh. It measures 1075 x 640 x 250 mm and offers flexibility for a wide range of high-power applications.
