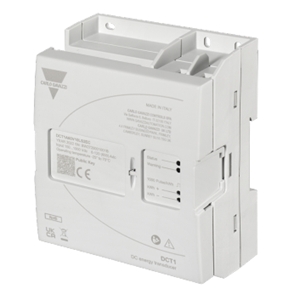

The DCT1A60V10LS1X from Carlo Gavazzi is an Energy Transducer for DC systems. It has a rated voltage of 1000 V and a rated current of 600 A. This EV charging meter measures energy, ampere-hour, power, voltage, current, load run hours and the total on-time. It is equipped with a Modbus RTU or SML communication port. This EV charging meter features secure and signed data transmission with an embedded signature algorithm that ensures data source authenticity. It has dedicated versions that are provided with an evaluation certificate, implementing 256-bit or 384-bit signature on Modbus RTU or a 384-bit signature on SML and are suitable for installation on electric vehicle chargers that require Eichrecht certification. This meter offers easy configuration via Modbus RTU using the UCS configuration software, available for download free of charge.
This EV charging meter complies with the precision International standard IEC 62053-41, guaranteeing the highest accuracy from 1% to 100 % of the measuring range. It can operate over an extremely wide temperature range by using temperature-drift compensation based on a calibration method that leverages dual temperature sensors. This EV charging meter ensures correct operation that is immediately visible through the warning and status LEDs, and real-time diagnostics via Modbus. It is available in a DIN-rail package that measures 115 x 92 x 58 mm.
