MEV100A100-4Y

Download Datasheet Request Quote

Note : Your request will be directed to Mersen.

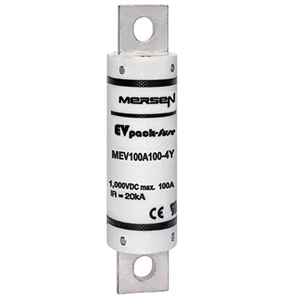

MEV100A100-4Y Image

The MEV100A100-4Y from Mersen is a Battery Pack Fuse specifically developed for on-board charging protection for EV and HEV. It has a voltage rating of 1000 V (DC) and a current rating of 100 A. This EV fuse has a breaking capacity of 100 kA. It dissipates an output power of 4.3 W. This RoHS-compliant EV fuse is available in a screw-mount package that measures 111 x 25.4 mm and is ideal for EV/HEV, battery pack protection, battery disconnect units, battery management systems, battery junction boxes for auxiliaries, and on-board chargers.

Product Specifications

Product Details

  • Part Number
    MEV100A100-4Y
  • Manufacturer
    Mersen
  • Description
    4.3 W Battery Pack Fuse

General

  • Material
    Terminals - Tin Plated Brass View all
  • Rated Voltage (DC)
    1000 V
  • Rated Current (DC)
    100 A
  • Breaking Capacity
    100 kA
  • Breaking Capacity Time
    40 ms
  • Standard
    IATF 16949, JASO D622
  • Package
    M8
  • Package Type
    Screw Mount View all
  • Application
    EV/HEV, Battery pack protection, Battery Disconnect Unit, Battery Management Systm, Battery Junction Box for auxiliaries, On-Board Charger
  • Dimension
    111 x 25.4 mm
  • Note
    Min breaking capacity (MBC) :- 1920 A, Power Dissipation :- 4.3 W, Weight :- 0.12 Gram
