  6. 2ED2742S01GXUMA1

2ED2742S01GXUMA1

Download Datasheet Request Quote

Note : Your request will be directed to Infineon Technologies.

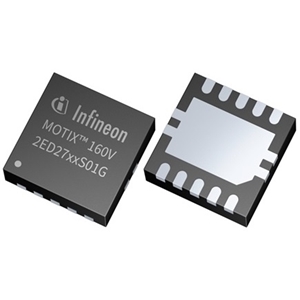

2ED2742S01GXUMA1 Image

The 2ED2742S01GXUMA1 from Infineon Technologies is a Half-Bridge Gate Driver IC that has been designed to drive N-channel MOSFETs. This gate driver IC requires an input voltage of 7 - 18 V. This gate driver IC utilizes a floating channel to achieve high-efficiency bootstrap operation and has a bootstrap voltage of +160 V. It offers independent under-voltage lockout for both high and low sides, providing robust protection and reliability along with integrated shoot-through protection with build-in dead time. This JEDEC-qualified gate driver integrates a short pulse/noise rejection input filter and Schmitt trigger inputs with hysteresis to improve signal integrity. This RoHS-compliant gate driver IC is available in a surface-mount package that measures 3 x 3 mm and is ideal for robotics, automotive, commercial and agricultural drones, and various other applications.

Product Specifications

Product Details

  • Part Number
    2ED2742S01GXUMA1
  • Manufacturer
    Infineon Technologies
  • Description
    Half-Bridge Gate Driver IC for Agriculture Drones Applications

General

  • Types of Gate Driver
    Half Bridge Gate Driver View all
  • Technology
    MOSFET
  • Configuration
    Non-Isolated
  • No of Drivers
    Dual View all
  • Number of Outputs
    Triple
  • Input Voltage
    7 to 18 V
  • Rise Time
    30 ns
  • Fall Time
    20 ns
  • Propagation Delay
    90 ns
  • Temperature operating range
    -50 to 150 Degree C
  • RoHS Compliant
    Yes
  • Qualification
    JEDEC78/20/22 View all
  • Industry
    Automotive, Commercial, Industrial
  • Package Type
    Surface Mount View all
  • Package
    VSON-10
  • Dimensions
    3 x 3 mm
  • Applications
    General purpose half bridge gate driver for N-Channel MOSFETs: Servo Drives in Robotics and Factory Automation, General Purpose Low Voltage Drives or inverters, e-Scooters, e-Bikes, and other e-Vehicles that do not require Automotive Qualification (LSEV), Battery operated Small Home Appliances (SHA), Commercial and Agricultural Drones, Professional and Consumer Service Robotics, Logistics Vehicles (eForklifts, Autonomous warehouse robotics), Battery operated hand-held power tools, Gardening or Outdoor Power Equipment (OPE) Tools
