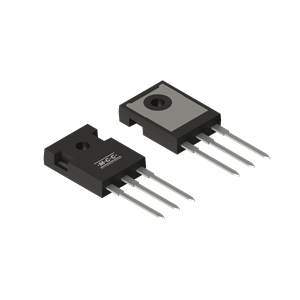

The MIW80N120BT1YHE3-BP from Micro Commercial Components is an Automotive-Grade Trench and Field Stop IGBT that has been designed to offer high-speed and smooth switching operation for hard and soft-switching applications. It has a collector-emitter breakdown voltage of over 1200 V, a gate threshold voltage of 5.05 V, and a collector-emitter saturation voltage of 2.3 V. This AEC-Q101-qualified IGBT has a continuous collector current of up to 160 A and a pulsed collector current of less than 240 A. It has a power dissipation of less than 521 W. This IGBT exhibits positive temperature coefficient characteristics for the collector-emitter saturation voltage curve and ensures good temperature stability and high ruggedness. It also complies with the UL 94 V-0 flammability standard for enhanced safety during operation. This RoHS-compliant IGBT is available in a through-hole package that measures 41.52 x 16.10 x 5.20 mm and is ideal for positive temperature coefficient (PTC) applications.
