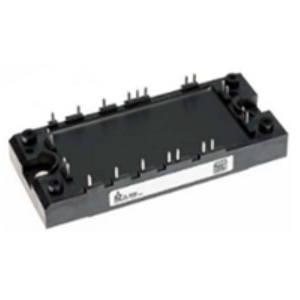

The CM50MXUA-24T from Mitsubishi Electric is an IGBT Module designed to provide efficient high-power switching operation for a range of applications. It has a collector-to-emitter voltage of up to 1200 V and a gate-emitter voltage of ±20 V. This IGBT has a DC collector current of up to 50 A and a gate-emitter leakage current of less than 0.5 µA. It has a saturated collector-to-emitter voltage of less than 2.15 V and a power dissipation of up to 330 W. This RoHS-compliant IGBT integrates a copper base plate with nickel-plated pin terminals. It is available as a module that measures 107.5 x 45.0 x 20.5 mm and is ideal for AC motor control, motion servo control, and power supply applications.
