MF72-001.3D20

Inrush Current Limiter by Cantherm (94 more products)

Note : Your request will be directed to Cantherm.

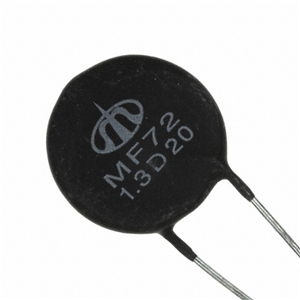

MF72-001.3D20 Image

The MF72-001.3D20 from Cantherm is a Power Negative Temperature Coefficient Thermistor that has been designed to provide inrush current suppression for sensitive electronics. It has a current rating of up to 9 A and a resistance of 37 milli-ohms. This thermistor can be connected in series with a power source to limit current surges typically created during turn-ON events. It decreases its resistance value to a very low value once the circuit is energized while causing no effect on the normal operating current. This current limiter delivers a fast response to current surges with high power handling capability in a small form factor. It is available in a through-hole package that measures 22.5 x 7 mm and is ideal for energy-saving lamps, electronic ballasts, UPS, heaters, filament protection, and power supplies, and inverter applications.

Product Specifications

Product Details

  • Part Number
    MF72-001.3D20
  • Manufacturer
    Cantherm
  • Description
    9 A Power Negative Temperature Coefficient Thermistor

General

  • Current Rating
    9 A
  • AC Voltage Rating
    120 to 240 V
  • Resistance
    37 milli-ohm
  • RoHS Compliant
    Yes
  • Temperature operating range
    -55 to 200 Degree C
  • Applications
    Energy-saving lamps, Electronic ballasts, UPS, Heaters, Filament protection, and Power supplies, and Inverter applications
  • Dimension
    22.5 x 7 mm
  • Package Type
    Through Hole
