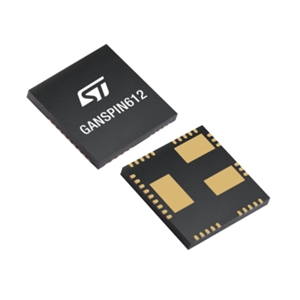

The GANSPIN612TR from STMicroelectronics is a Half-Bridge GaN Motor Driver that integrates two enhancement-mode GaN transistors in a half-bridge configuration with a high-voltage, high-frequency gate driver for motion control applications. It requires an input voltage of 3.3-20 V and has a drain-source current of up to 5.5 A. This motor driver has a breakdown voltage of 650 V and an on-state drain-source resistance of 270 milli-ohms. It features reverse conduction capability and zero reverse recovery loss. This motor driver includes a comparator for overcurrent detection with smart shutdown, a UVLO protection on VCC, VHS, and VLS supplies, and interlocking to prevent cross-conduction, overtemperature shutdown, shutdown/standby pins, and fault output.
This RoHS-compliant motor driver integrates linear regulators to stabilize high- and low-side driver supplies and incorporates an internal bootstrap diode to streamline high-side biasing. It is available in a surface-mount package that measures 9 x 9 x 1 mm and is ideal for home appliances, compressors, pumps, fans, personal care appliances, factory automation, servo drives and power tool applications.
