RHT-OBC-6.6KW

Note : Your request will be directed to Elecpeek.

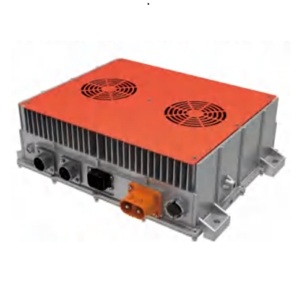

RHT-OBC-6.6KW Image

The RHT-OBC-6.6KW from Elecpeek is a Fast and Slow Charging Integrated Charger. It delivers an output power of 6.6 kW. This charger requires an input voltage of 90-456 VAC and provides an output voltage of 24-144 V. It incorporates CAN bus control and requires forced air cooling for enhanced thermal performance. This OBC is designed for both fast and slow charging needs to offer user convenience and flexibility with varying charging preferences and time availability. It combines cutting-edge technology to offer safe and effective charging for a variety of EV models with varying voltage needs. This IP67-rated charger operates over -40 to 55°C.

Product Specifications

View similar products

Product Details

  • Part Number
    RHT-OBC-6.6KW
  • Manufacturer
    Elecpeek
  • Description
    6.6 kW Fast and Slow Charging Integrated Charger

General

  • Configuration
    Single Phase, Three Phase
  • AC Input Voltage
    90 to 456 V
  • AC Charging Standard
    93
  • Frequency
    45-65 Hz
  • DC Output Voltage
    24 to 180 V
  • DC Output Current
    0 to 150 A
  • DC Output Power
    6600 W
  • Efficiency
    0.93
  • DC Charging Standard
    93
  • Power Factor
    0.99
  • Interface
    CAN-bus
  • IP Rating
  • Operating Temperature
    -40 to 55 Degree C
  • Application
    Electric Vehicle
  • Note
    Cooling :- Air Cooling

Technical Documents
