EC1001PR

Power Capacitor by Empower Semiconductor

Note : Your request will be directed to Empower Semiconductor.

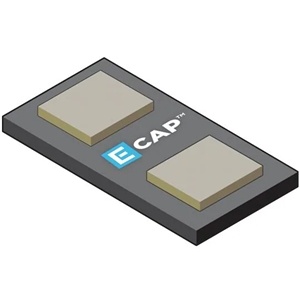

EC1001PR Image

The EC1001PR from Empower Semiconductor is a Silicon Power Capacitor that is ideal for decoupling in power distribution networks, voltage regulator (VR) bypass capacitors, power supply noise suppression, power integrity for high-speed ICs, signal integrity of high-speed interfaces, and high-frequency noise suppression applications. It has a capacitance of 220 nF. This capacitor has an ultra-low profile design supporting very low AC/DC bias variation. It offers very low equivalent series inductance (ESL) and equivalent series resistance (ESR) and provides high stability over temperature. This low leakage current capacitor has lead-free copper finish and is compatible with automatic reflow or manual soldering technologies. It is available in a surface-mount package that measures 1.0 x 0.5 mm.

Product Specifications

Product Details

  • Part Number
    EC1001PR
  • Manufacturer
    Empower Semiconductor
  • Description
    220 nF Silicon Power Capacitor for Bypass Applications

General

  • Type
    Film Capacitor
  • Capacitance
    200 nF
  • Tolerance
    15%
  • Voltage Rating
    4 V
  • Operating Temperature
    -55 to 125 Degree C
  • RoHS Compliant
    Yes
  • Dimension
    1 x 0.5 mm
  • Application
    Decoupling in Power Distribution Network, Voltage Regulator (VR) bypass capacitor, Power supply noise suppression, Power Integrity for high-speed IC, Signal integrity of high-speed interface, High frequency noise suppression, Applications with low-profile requirement
  • Package Type
    Surface Mount
  • Package
    CSP
