FLCD6L0755K2C

Download Datasheet Request Quote

Note : Your request will be directed to Kyocera AVX.

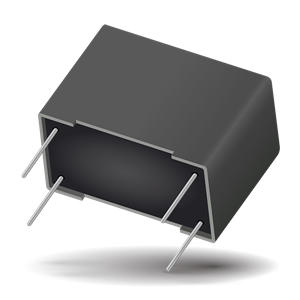

FLCD6L0755K2C Image

The FLCD6L0755K2C from Kyocera AVX is a Power Capacitor with Capacitance 7.5 uF, Voltage Rating 400 V, Peak Current 187.5 A, Equivalent Series Resistance (ESR) 5.5 mOhm, Inductance 30.0 nH. Tags: Through Hole, Film Capacitor. More details for FLCD6L0755K2C can be seen below.

Product Specifications

Product Details

  • Part Number
    FLCD6L0755K2C
  • Manufacturer
    Kyocera AVX
  • Description
    7.5 uF, ±10%, 400 V, Power Film Capacitor

General

  • Type
    Film Capacitor View all
  • Phase Configuration
    Three Phase View all
  • Capacitance
    7.5 uF
  • Tolerance
    ±10%
  • Voltage Rating
    400 V
  • Peak Current
    187.5 A
  • Equivalent Series Resistance (ESR)
    5.5 mOhm
  • Inductance
    30.0 nH
  • Life Expectancy
    1, 00, 000 hours
  • Operating Temperature
    -40 to 85 Degree C
  • RoHS Compliant
    Yes View all
  • Dimension
    42.5 x 40 x 20.0 mm ( W x H x T )
  • Application
    Output AC filtering for power converters, UPS systems, solar inverters and motor drives
  • Package Type
    Through Hole View all
  • Note
    Dielectric :- Polypropylene, Thermal resistance (Rth) :- 18.1 ºC/W
