FVA16H0223K2L

Download Datasheet Request Quote

Note : Your request will be directed to Kyocera AVX.

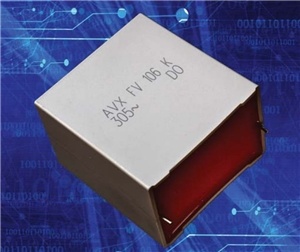

FVA16H0223K2L Image

The FVA16H0223K2L from Kyocera AVX is a Power Capacitor with Capacitance 0.022 uF, Voltage Rating 305 V, Peak Current 2.2 A, Operating Temperature -40 to 110 Degree C. Tags: Through Hole, Film Capacitor. More details for FVA16H0223K2L can be seen below.

Product Specifications

Product Details

  • Part Number
    FVA16H0223K2L
  • Manufacturer
    Kyocera AVX
  • Description
    0.022 uF, ±10%, 305 V, Power Film Capacitor

General

  • Type
    Film Capacitor View all
  • Phase Configuration
    Single Phase View all
  • Capacitance
    0.022 uF
  • Tolerance
    ±10%
  • Voltage Rating
    305 V
  • Peak Current
    2.2 A
  • Life Expectancy
    100, 000 hrs
  • Operating Temperature
    -40 to 110 Degree C
  • RoHS Compliant
    Yes View all
  • Dimension
    13.0 x 11.0 x 5.0 mm ( W x H x T )
  • Application
    AC Filtering, Suitable for Across-the-line Capacitors, EMI Filters, Spark-Killer Circuits
  • Package Type
    Through Hole View all
  • Note
    Dielectric :- Polypropylene, Insulation Resistance :- 5000 to 15000 Mohm
