PNU65010ERX

Power Diode by Nexperia (435 more products)

Note : Your request will be directed to Nexperia.

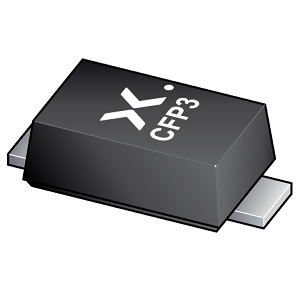

PNU65010ERX Image

The PNU65010ER from Nexperia is an Ultrafast Recovery Rectifier Diode that is ideal for AC/DC converters, SMPS/UPS, battery chargers, inverters, and freewheeling applications. It has a forward voltage of 1 V and a forward current of less than 1.4 A. This power diode has a reverse voltage of up to 650 V and a reverse current of 0.5 µA. It has a repetitive peak reverse voltage of less than 650 V and a non-repetitive peak forward current of up to 33 A. This rectifier is based on high-efficiency planar technology and uses clip-bond technology to provide a high power handling capability. It has low inductance and offers high power density. This RoHS-compliant diode is available in a surface-mount package that measures 2.6 x 1.7 x 1 mm.

Product Specifications

View similar products

Product Details

  • Part Number
    PNU65010ERX
  • Manufacturer
    Nexperia
  • Description
    650 V Ultrafast Recovery Rectifier Diode for SMPS Applications

General

  • Types of Diode
    Fast Recovery Diode
  • Configuration of Diode
    Single Diode
  • Forward Current
    1.4 A
  • Forward Voltage
    1 V
  • Reverse Current
    0.5 µA
  • Reverse Voltage
    650 V
  • Repetitive Peak Reverse Voltage
    650 V
  • Non-Repetitive Peak Forward Current
    33 A
  • RoHS Compliant
    Yes
  • Temperature operating range
    -55 to 175 degree C
  • Applications
    AC/DC converter, SMPS / UPS, Battery charger, Inverter, Freewheeling applications
  • Dimensions
    2.6 mm x 1.7 mm x 1 mm
  • Package Type
    Surface Mount
  • Package
    CFP3
