VS-150EBU04HF4

Power Diode by Vishay (595 more products)

Note : Your request will be directed to Vishay.

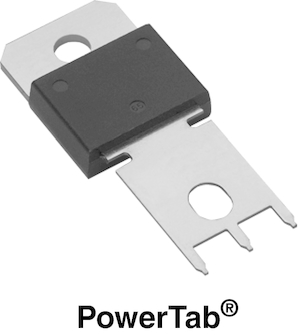

VS-150EBU04HF4 Image

The VS-150EBU04HF4 from Vishay is a Power Diode with Forward Current 150 A, Forward Voltage 0.9 to 1.17 V, Reverse Current 0.05 to 4 mA, Repetitive Peak Reverse Voltage 400 V, Non-Repetitive Peak Forward Current 1500 A. More details for VS-150EBU04HF4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VS-150EBU04HF4
  • Manufacturer
    Vishay
  • Description
    150 A, Fast Recovery Diode, Rectifier Diode

General

  • Types of Diode
    Fast Recovery Diode, Rectifier Diode
  • Configuration of Diode
    Single Diode
  • Forward Current
    150 A
  • Forward Voltage
    0.9 to 1.17 V
  • Reverse Current
    0.05 to 4 mA
  • Repetitive Peak Reverse Voltage
    400 V
  • Non-Repetitive Peak Forward Current
    1500 A
  • RoHS Compliant
    Yes
  • Temperature operating range
    -55 to +175 Degree C
  • Applications
    HF welding, power converters
  • Package
    PowerTab®
