AC3028SQ Series

Download Datasheet Request Quote

Note : Your request will be directed to Bourns.

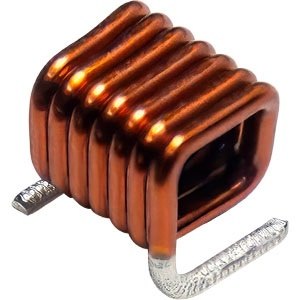

AC3028SQ Series Image

The AC3028SQ Series from Bourns are Air Coil Inductors. They have an inductance in the range of 27-47 nH and have inductance tolerances of ±2 and ±5. These power inductors have current ratings of up to 5.5 A and a DC resistance in the range of 8.1-11.3 milli-ohms, featuring high Q value. They are designed to operate across a wide temperature range of -25°C to +125°C. These RoHS-compliant power inductors are available in surface-mount packages and are ideal for high frequency television and radio receivers, radio transmitters, RF amplifiers, and tuning applications.

Product Specifications

Product Details

  • Part Number
    AC3028SQ Series
  • Manufacturer
    Bourns
  • Description
    Air Coil Inductors

General

  • Types of Inductor
    Air Core Inductor View all
  • Industry
    Industrial, Commercial
  • Inductance
    27 to 47 nH
  • Inductance Tolerance
    ±2, ±5 %
  • DCR
    8.1 to 11.3 milli-ohm
  • Saturation Current
    4.4 to 5.5 A
  • SRF
    2.2 to 2.6 GHz
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -25 to 125 Degree C
  • Dimension
    3.3 x 2.67 x 2.79 mm
  • Applications
    High frequency television and radio receivers, Radio transmitters, RF amplifiers, Tuning applications
  • Package Type
    Surface Mount View all
  • Note
    Test Frequency (MHz) :- 400 MHz
