CSCE1470-4R7M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

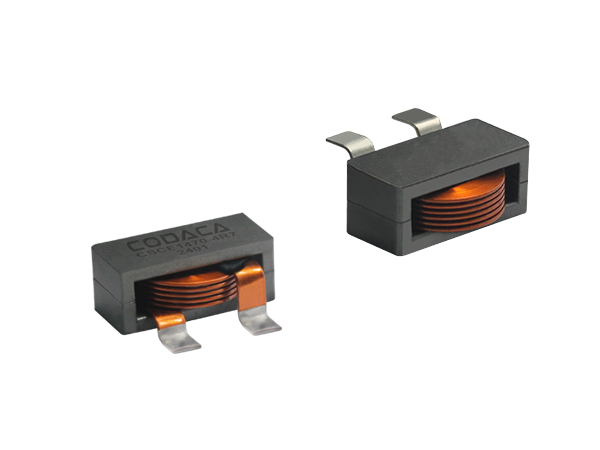

CSCE1470-4R7M Image

The CSCE1470-4R7M from Codaca Electronic is a Power Inductor with Inductance 4.70 µH, Inductance Tolerance ±20 %, DCR 2.60 to 3.10 milli-ohm, Saturation Current 8 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCE1470-4R7M can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCE1470-4R7M
  • Manufacturer
    Codaca Electronic
  • Description
    4.70 µH, ±20 %, 8 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Industrial, Commercial
  • Inductance
    4.70 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    2.60 to 3.10 milli-ohm
  • Saturation Current
    8 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    14.50 x 14.00 x 6.70 mm (L x W x H)
  • Applications
    Ideally used in tablet PC, LCD display, server application, High current power supplies, Battery power devices.
  • Package Type
    Surface Mount View all
  • Package
    SMD

Technical Documents
View details on the manufacturer's website
