CSCE2580-3R3M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

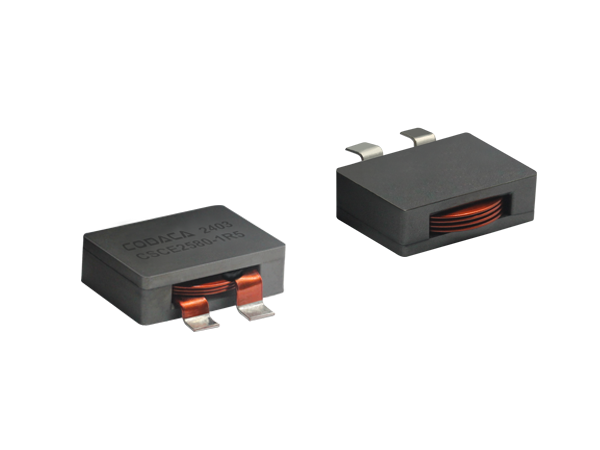

CSCE2580-3R3M Image

The CSCE2580-3R3M from Codaca Electronic is a Power Inductor with Inductance 3.30 µH, Inductance Tolerance ±20 %, DCR 2.60 to 3.00 milli-ohm, Saturation Current 38 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCE2580-3R3M can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCE2580-3R3M
  • Manufacturer
    Codaca Electronic
  • Description
    3.30 µH, ±20 %, 38 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Industrial, Commercial
  • Inductance
    3.30 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    2.60 to 3.00 milli-ohm
  • Saturation Current
    38 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    25.00 x 25.00 x 8.40 mm (L x W x H)
  • Applications
    Ideally used in tablet PC, LCD display, server application, High current power supplies, Battery power devices, DC/DC converters in distributed power systems.
  • Package Type
    Surface Mount View all
  • Package
    SMD
