CSCF2014-150MC

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

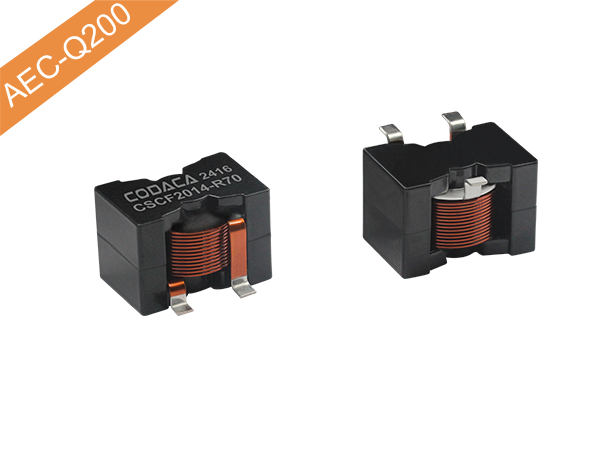

CSCF2014-150MC Image

The CSCF2014-150MC from Codaca Electronic is a Power Inductor with Inductance 15 µH, Inductance Tolerance ±20 %, DCR 7.10 to 8.50 milli-ohm, Saturation Current 21 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCF2014-150MC can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCF2014-150MC
  • Manufacturer
    Codaca Electronic
  • Description
    15 µH, ±20 %, 21 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Industrial, Commercial
  • Inductance
    15 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    7.10 to 8.50 milli-ohm
  • Saturation Current
    21 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    22.20 x 21.80 x 14.50 mm (L x W x H)
  • Applications
    Ideally used in tablet PC, LCD display, server application, High current power supplies, Battery power devices, DC/DC converters in distributed power systems.
  • Package Type
    Surface Mount View all
  • Package
    SMD

Technical Documents
View details on the manufacturer's website
