CSCF2014B-330MC

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

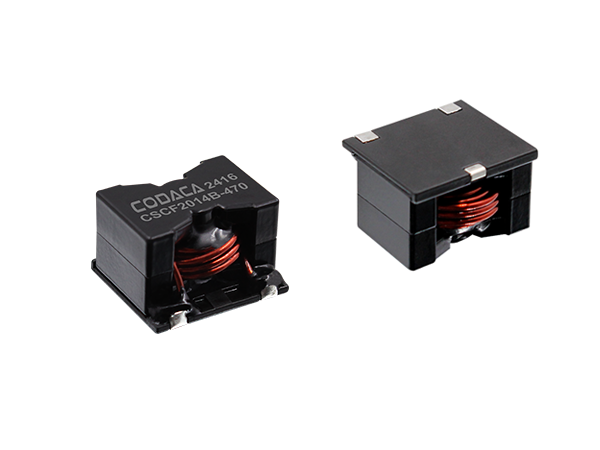

CSCF2014B-330MC Image

The CSCF2014B-330MC from Codaca Electronic is a Power Inductor with Inductance 33 µH, Inductance Tolerance ±20 %, DCR 21.0 to 25.0 milli-ohm, Saturation Current 9.50 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCF2014B-330MC can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCF2014B-330MC
  • Manufacturer
    Codaca Electronic
  • Description
    33 µH, ±20 %, 9.50 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Industrial, Commercial
  • Inductance
    33 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    21.0 to 25.0 milli-ohm
  • Saturation Current
    9.50 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    21.00 x 18.50 x 14.50 mm (L x W x H)
  • Applications
    Ideally used in tablet PC, LCD display, server application, High current power supplies, Battery power devices, DC/DC converters in distributed power systems.
  • Package Type
    Surface Mount View all
  • Package
    SMD

Technical Documents
View details on the manufacturer's website
