CSCF2915L-150MC

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

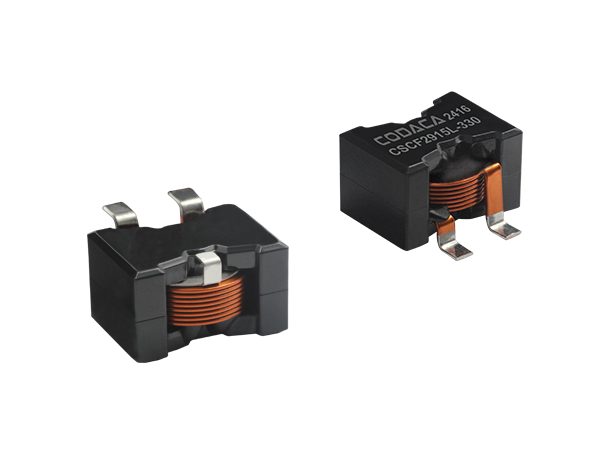

CSCF2915L-150MC Image

The CSCF2915L-150MC from Codaca Electronic is a Power Inductor with Inductance 15 µH, Inductance Tolerance ±20 %, DCR 1.20 to 1.36 milli-ohm, Saturation Current 11 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCF2915L-150MC can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCF2915L-150MC
  • Manufacturer
    Codaca Electronic
  • Description
    15 µH, ±20 %, 11 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Industrial, Commercial
  • Inductance
    15 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    1.20 to 1.36 milli-ohm
  • Saturation Current
    11 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    27.90 x 27.90 x 15.40 mm ( L x W x H)
  • Applications
    Ideally used in tablet PC, LCD display, server application, High current power supplies, Battery power devices, DC/DC converters in distributed power systems.
  • Package Type
    Surface Mount View all
  • Package
    SMD
