CSCM1256-6R0M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

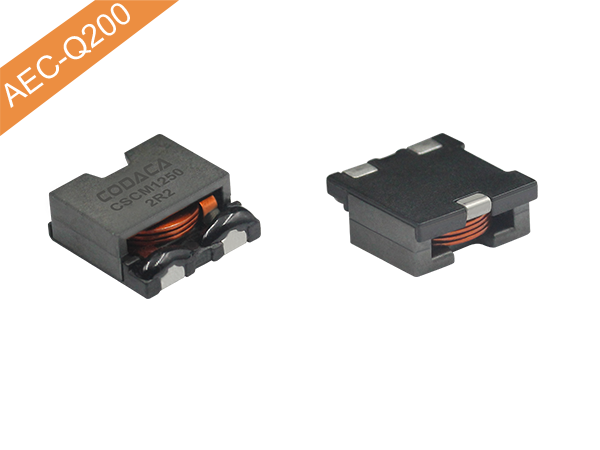

CSCM1256-6R0M Image

The CSCM1256-6R0M from Codaca Electronic is a Power Inductor with Inductance 6 µH, Inductance Tolerance ±20 %, DCR 5.23 to 6.27 milli-ohm, Saturation Current 9 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCM1256-6R0M can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCM1256-6R0M
  • Manufacturer
    Codaca Electronic
  • Description
    6 µH, ±20 %, 9 A, Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Industrial, Commercial
  • Inductance
    6 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    5.23 to 6.27 milli-ohm
  • Saturation Current
    9 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    12.70 x 12.60 x 5.45 mm (L x W x H)
  • Package Type
    Surface Mount View all
  • Package
    SMD

Technical Documents
View details on the manufacturer's website
