CSCM1290-470M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

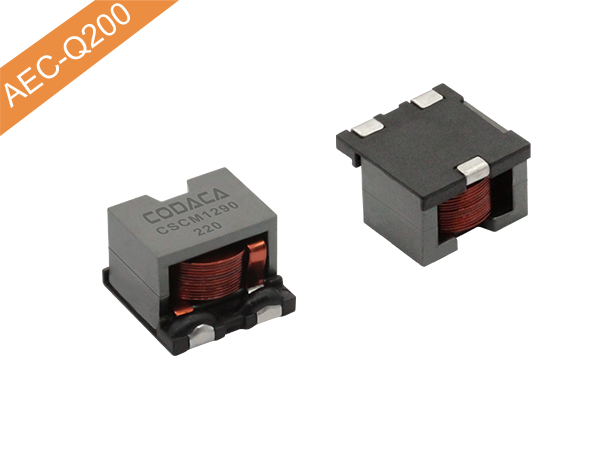

CSCM1290-470M Image

The CSCM1290-470M from Codaca Electronic is a Power Inductor with Inductance 47 µH, Inductance Tolerance ±20 %, DCR 21.0 to 23.1 milli-ohm, Saturation Current 3 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCM1290-470M can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCM1290-470M
  • Manufacturer
    Codaca Electronic
  • Description
    47 µH, ±20 %, 3 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Industrial, Commercial
  • Inductance
    47 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    21.0 to 23.1 milli-ohm
  • Saturation Current
    3 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    13.50 x 12.50 x 9.00 mm (L x W x H)
  • Applications
    Rraphic cards/ industrial conputers, DC /DC converters/Motherboards/Filter, High current switching regulators/Polyphase-switching regulators
  • Package Type
    Surface Mount View all
  • Package
    SMD
