CSCM1460-4R2M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

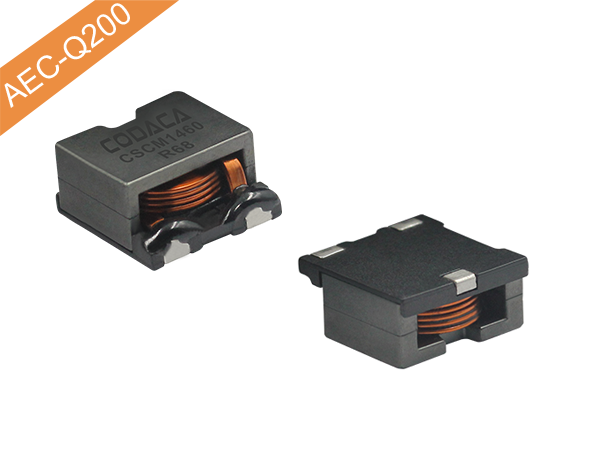

CSCM1460-4R2M Image

The CSCM1460-4R2M from Codaca Electronic is a Power Inductor with Inductance 4.20 µH, Inductance Tolerance ±20 %, DCR 5.67 to 6.80 milli-ohm, Saturation Current 17 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCM1460-4R2M can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCM1460-4R2M
  • Manufacturer
    Codaca Electronic
  • Description
    4.20 µH, ±20 %, 17 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Industrial, Commercial
  • Inductance
    4.20 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    5.67 to 6.80 milli-ohm
  • Saturation Current
    17 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    14.80 x 14.50 x 6.00 mm (L x W x H)
  • Applications
    Rraphic cards/ industrial conputers, DC /DC converters/Motherboards/Filter, High current switching regulators/Polyphase-switching regulators
  • Package Type
    Surface Mount View all
  • Package
    SMD
