CSCM1480L-120M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

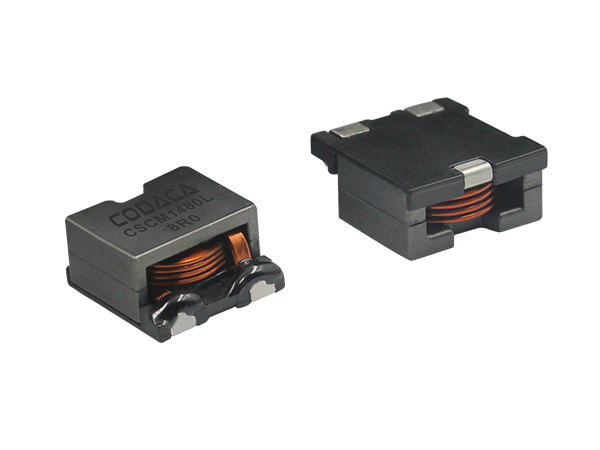

CSCM1480L-120M Image

The CSCM1480L-120M from Codaca Electronic is a Power Inductor with Inductance 12 µH, Inductance Tolerance ±20 %, DCR 11.1 to 13.3 milli-ohm, Saturation Current 10 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for CSCM1480L-120M can be seen below.

Product Specifications

Product Details

  • Part Number
    CSCM1480L-120M
  • Manufacturer
    Codaca Electronic
  • Description
    12 µH, ±20 %, 10 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Industrial, Commercial
  • Inductance
    12 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    11.1 to 13.3 milli-ohm
  • Saturation Current
    10 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    14.80 x 14.50 x 8.00 mm (L x W x H)
  • Applications
    Rraphic cards/ industrial conputers, DC /DC converters/Motherboards/Filter, High current switching regulators/Polyphase-switching regulators
  • Package Type
    Surface Mount View all
  • Package
    SMD

Technical Documents
View details on the manufacturer's website
