PKS1010-821K

Power Inductor by CODACA Electronic (928 more products)
Download Datasheet Request Quote

Note : Your request will be directed to CODACA Electronic.

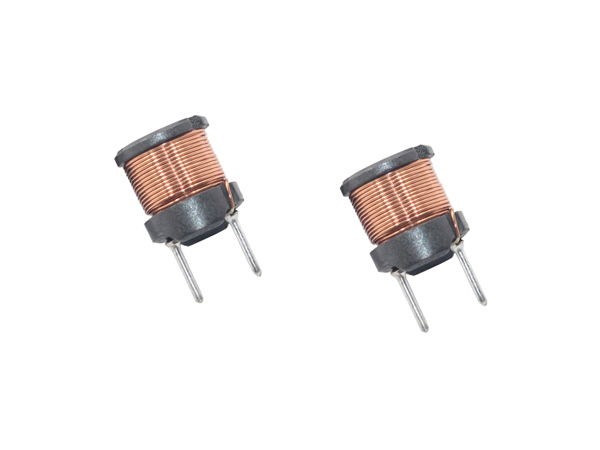

PKS1010-821K Image

The PKS1010-821K from CODACA Electronic is a Power Inductor with Inductance 820 µH, Inductance Tolerance ±10 %, DCR 1190 to 1428 milli-ohm, Saturation Current 1.10 A, Temperature Operating Range -40 to 125 Degree C. Tags: Through Hole. More details for PKS1010-821K can be seen below.

Product Specifications

Product Details

  • Part Number
    PKS1010-821K
  • Manufacturer
    CODACA Electronic
  • Description
    820 µH, ±10 %, 1.10 A, Drum Core Power Inductor

General

  • Types of Inductor
    Drum Core Inductor
  • Industry
    Industrial, Commercial
  • Inductance
    820 µH
  • Inductance Tolerance
    ±10 %
  • DCR
    1190 to 1428 milli-ohm
  • Saturation Current
    1.10 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    10.50 x 10.50 x 10.50 mm (L x W x H)
  • Applications
    Noise filtering in power amplifiers, power supplies and Speaker crossoner networks, buck converter, network communication equipment
  • Package Type
    Through Hole
  • Package
    DIP
  • Note
    Irms :-0.62 A
