RKR1030-220M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

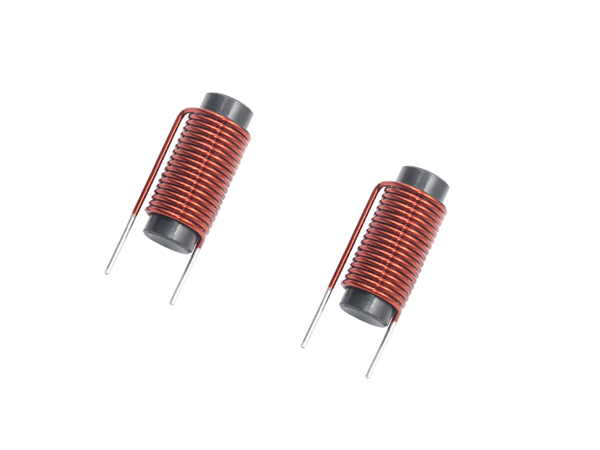

RKR1030-220M Image

The RKR1030-220M from Codaca Electronic is a Power Inductor with Inductance 22 µH, Inductance Tolerance ±20 %, DCR 20.3 to 26.4 milli-ohm, Saturation Current 19.5 A, Temperature Operating Range -40 to 125 Degree C. Tags: Through Hole. More details for RKR1030-220M can be seen below.

Product Specifications

Product Details

  • Part Number
    RKR1030-220M
  • Manufacturer
    Codaca Electronic
  • Description
    22 µH, ±20 %, 19.5 A, Rod Power Inductor

General

  • Types of Inductor
    Unshielded Inductor View all
  • Industry
    Industrial, Commercial
  • Inductance
    22 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    20.3 to 26.4 milli-ohm
  • Saturation Current
    19.5 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    13.50 x 13.50 x 30 mm (L x W x H)
  • Applications
    Standard filter applications, EMC Suppression in motor drive systems, In over all application in infotainment systems
  • Package Type
    Through Hole View all
  • Package
    DIP
  • Note
    Irms :- 10.7 A, Unshielded Inductor
