SP104-560K

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

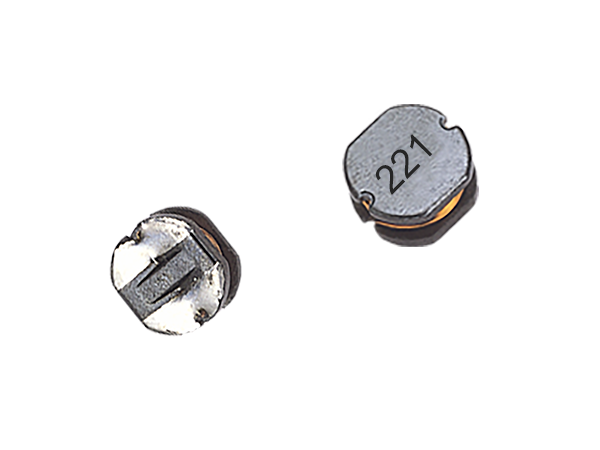

SP104-560K Image

The SP104-560K from Codaca Electronic is a Power Inductor with Inductance 56 µH, Inductance Tolerance ±10 %, DCR 132 to 158 milli-ohm, Saturation Current 2.15 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for SP104-560K can be seen below.

Product Specifications

Product Details

  • Part Number
    SP104-560K
  • Manufacturer
    Codaca Electronic
  • Description
    56 µH, ±10 %, 2.15 A, Drum Core Inductor

General

  • Types of Inductor
    Drum Core Inductor View all
  • Industry
    Industrial, Commercial
  • Inductance
    56 µH
  • Inductance Tolerance
    ±10 %
  • DCR
    132 to 158 milli-ohm
  • Saturation Current
    2.15 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    10.00 x 9.00 x 4.00 mm (L x W x H)
  • Applications
    Ideally used in Notebook PC, LCD T, Game machine STB, buck converter, network communication equipment
  • Package Type
    Surface Mount View all
  • Package
    SMD
  • Note
    Irms :-1.87 A
