SPD5D28-100M

Power Inductor by CODACA Electronic (928 more products)
Download Datasheet Request Quote

Note : Your request will be directed to CODACA Electronic.

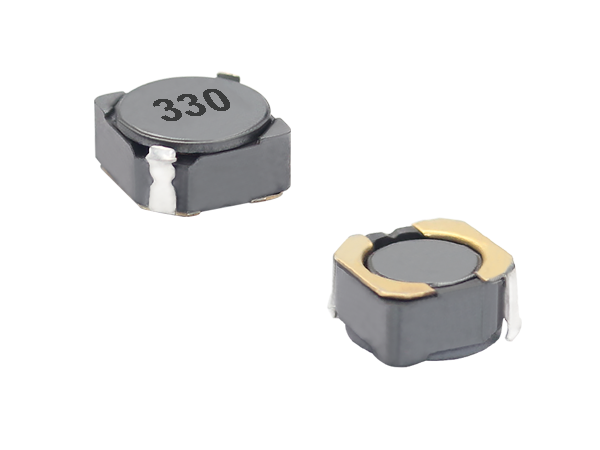

SPD5D28-100M Image

The SPD5D28-100M from CODACA Electronic is a Power Inductor with Inductance 10 µH, Inductance Tolerance ±20 %, DCR 67.5 to 81 milli-ohm, Saturation Current 1.25 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for SPD5D28-100M can be seen below.

Product Specifications

Product Details

  • Part Number
    SPD5D28-100M
  • Manufacturer
    CODACA Electronic
  • Description
    10 µH, ±20 %, 1.25 A, Drum Core Power Inductor

General

  • Types of Inductor
    Drum Core Inductor
  • Industry
    Industrial, Commercial
  • Inductance
    10 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    67.5 to 81 milli-ohm
  • Saturation Current
    1.25 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    5.70 x 5.70 x 2.80 mm (L x W x H)
  • Applications
    Ideally used in Notebook PC, LCD T, Game machine STB buck converter, network communication equipment
  • Package Type
    Surface Mount
  • Package
    SMD
  • Note
    Irms :-1.83 A
