SPD6D38-821M

Power Inductor by CODACA Electronic (928 more products)
Download Datasheet Request Quote

Note : Your request will be directed to CODACA Electronic.

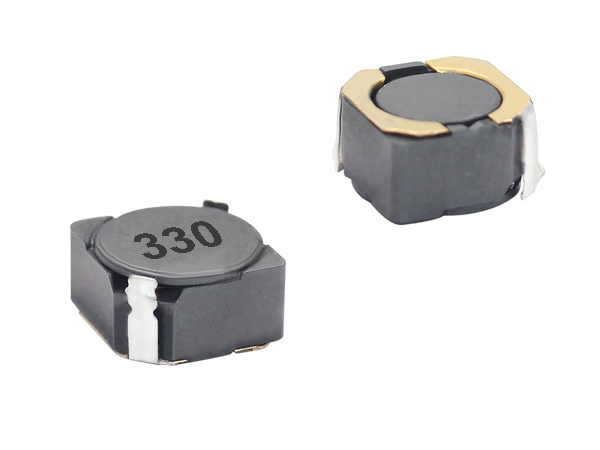

SPD6D38-821M Image

The SPD6D38-821M from CODACA Electronic is a Power Inductor with Inductance 820 µH, Inductance Tolerance ±20 %, DCR 3130 to 3756 milli-ohm, Saturation Current 0.27 A, Temperature Operating Range -40 to 125 Degree C. Tags: Surface Mount. More details for SPD6D38-821M can be seen below.

Product Specifications

Product Details

  • Part Number
    SPD6D38-821M
  • Manufacturer
    CODACA Electronic
  • Description
    820 µH, ±20 %, 0.27 A, Drum Core Power Inductor

General

  • Types of Inductor
    Drum Core Inductor
  • Industry
    Industrial, Commercial
  • Inductance
    820 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    3130 to 3756 milli-ohm
  • Saturation Current
    0.27 A
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -40 to 125 Degree C
  • Dimension
    6.80 x 6.80 x 3.80 mm (L x W x H)
  • Applications
    Ideally used in Notebook PC, LCD T, Game machine STB buck converter, network communication equipment
  • Package Type
    Surface Mount
  • Package
    SMD
  • Note
    Irms :-0.32 A
