VSAB0650-560M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

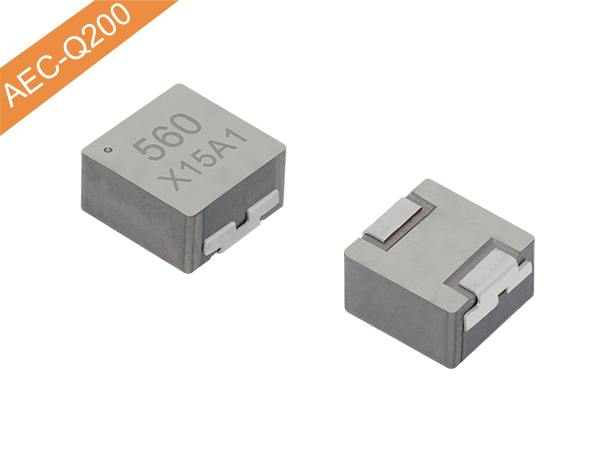

VSAB0650-560M Image

The VSAB0650-560M from Codaca Electronic is a Power Inductor with Inductance 56 µH, Inductance Tolerance ±20 %, DCR 235 to 270 milli-ohm, Saturation Current 1.30 A, Temperature Operating Range -55 to 155 Degree C. Tags: Surface Mount. More details for VSAB0650-560M can be seen below.

Product Specifications

Product Details

  • Part Number
    VSAB0650-560M
  • Manufacturer
    Codaca Electronic
  • Description
    56 µH, ±20 %, 1.30 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Commercial, Industrial
  • Inductance
    56 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    235 to 270 milli-ohm
  • Saturation Current
    1.30 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -55 to 155 Degree C
  • Dimension
    6.95 x 6.60 x 4.80 mm (L x W x H)
  • Applications
    Engine and transmission control units, Diesel injection drivers, Noise suppresion for motors:windshield wipers/power seats/Power Mirrors/heating and ventilation blower/ HID lighting
  • Package Type
    Surface Mount View all
  • Package
    SMD
  • Note
    Irms :-1.30 A
