VSAB1770-220M

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

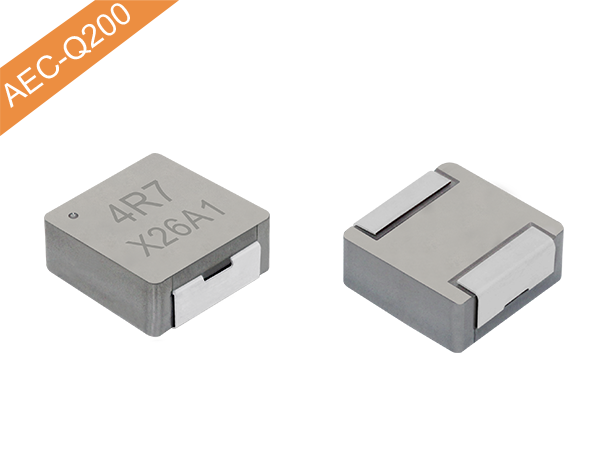

VSAB1770-220M Image

The VSAB1770-220M from Codaca Electronic is a Power Inductor with Inductance 22 µH, Inductance Tolerance ±20 %, DCR 22 to 27 milli-ohm, Saturation Current 9 A, Temperature Operating Range -55 to 155 Degree C. Tags: Surface Mount. More details for VSAB1770-220M can be seen below.

Product Specifications

Product Details

  • Part Number
    VSAB1770-220M
  • Manufacturer
    Codaca Electronic
  • Description
    22 µH, ±20 %, 9 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Commercial, Industrial
  • Inductance
    22 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    22 to 27 milli-ohm
  • Saturation Current
    9 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -55 to 155 Degree C
  • Dimension
    17.45 x 16.95 x 6.80 mm (L x W x H)
  • Applications
    Engine and transmission control units, Diesel injection drivers, Noise suppresion for motors:windshield wipers/power seats/Power Mirrors/heating and ventilation blower/ HID lighting
  • Package Type
    Surface Mount View all
  • Package
    SMD
  • Note
    Irms :-8.50 A
