VSEB0530H-4R7MC

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

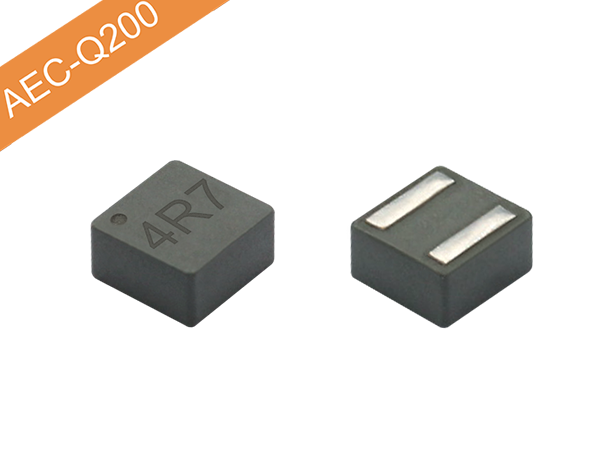

VSEB0530H-4R7MC Image

The VSEB0530H-4R7MC from Codaca Electronic is a Power Inductor with Inductance 4.70 µH, Inductance Tolerance ±20 %, DCR 25.8 to 30.8 milli-ohm, Saturation Current 5.30 A, Temperature Operating Range -55 to 155 Degree C. Tags: Surface Mount. More details for VSEB0530H-4R7MC can be seen below.

Product Specifications

Product Details

  • Part Number
    VSEB0530H-4R7MC
  • Manufacturer
    Codaca Electronic
  • Description
    4.70 µH, ±20 %, 5.30 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Commercial, Industrial
  • Inductance
    4.70 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    25.8 to 30.8 milli-ohm
  • Saturation Current
    5.30 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -55 to 155 Degree C
  • Dimension
    5.55 x 4.20 x 3.00 mm (L x W x H)
  • Applications
    Engine and transmission control units, Diesel injection drivers, Noise suppresion for motors:windshield wipers/power seats/Power Mirrors/heating and ventilation blower/ HID lighting
  • Package Type
    Surface Mount View all
  • Package
    SMD
  • Note
    Irms :-7.10 A
