VSEB0850H-150MC

Download Datasheet Request Quote

Note : Your request will be directed to Codaca Electronic.

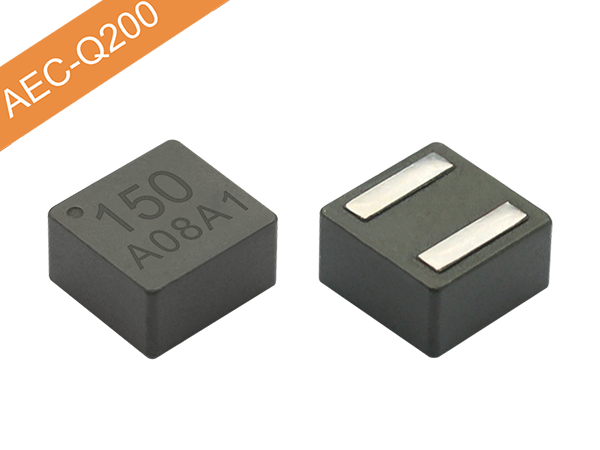

VSEB0850H-150MC Image

The VSEB0850H-150MC from Codaca Electronic is a Power Inductor with Inductance 15 µH, Inductance Tolerance ±20 %, DCR 37 to 44 milli-ohm, Saturation Current 6.10 A, Temperature Operating Range -55 to 155 Degree C. Tags: Surface Mount. More details for VSEB0850H-150MC can be seen below.

Product Specifications

Product Details

  • Part Number
    VSEB0850H-150MC
  • Manufacturer
    Codaca Electronic
  • Description
    15 µH, ±20 %, 6.10 A, Shielded Power Inductor

General

  • Types of Inductor
    Shielded Inductor View all
  • Industry
    Automotive, Commercial, Industrial
  • Inductance
    15 µH
  • Inductance Tolerance
    ±20 %
  • DCR
    37 to 44 milli-ohm
  • Saturation Current
    6.10 A
  • Qualification
    AEC-Q200 View all
  • RoHS Compliant
    Yes
  • Temperature Operating Range
    -55 to 155 Degree C
  • Dimension
    8.80 x 8.30 x 4.80 mm (L x W x H)
  • Applications
    Engine and transmission control units, Diesel injection drivers, Noise suppresion for motors:windshield wipers/power seats/Power Mirrors/heating and ventilation blower/ HID lighting
  • Package Type
    Surface Mount View all
  • Package
    SMD
  • Note
    Irms :-7.30 A
