1xxPC Series

Note : Your request will be directed to Bourns.

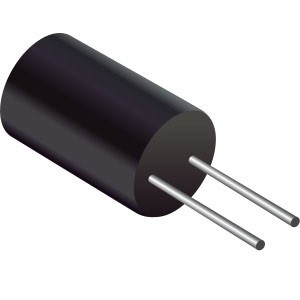

1xxPC Series Image

The 1xxPC Series from Bourns are Radial Wirewound Resistors. They have a resistance ranging from 1 ohm to 1 mega-ohms and a resistance tolerance of ±0.005 % to ±1 %. These resistors have a power rating of up to 0.5 W. They have a temperature coefficient of ±2 PPM/°C and can operate over a temperature range of -55°C to +145°C. These RoHS-compliant non-inductive multi-Pi core resistors offer long-term stability of 100 ppm/year and have matched resistance sets to ±0.001 % and ±0.5 ppm/°C. They are available in surface-mount packages.

Product Specifications

Product Details

  • Part Number
    1xxPC Series
  • Manufacturer
    Bourns
  • Description
    0.5 W Radial Wirewound Resistors

General

  • Types of Power Resistor
    Wirewound Resistor View all
  • Industry
    Industrial, Commercial
  • Resistance
    0.001 to 1 Mega-ohm
  • Tolerance
    ±0.005%, ±5%
  • Power Rating
    0.05 to 0.5 W
  • Voltage Rating
    150 to 400 V
  • Temperature Operating Range
    -55 to 145 Degree C
  • Package Type
    Through Hole View all
