PSD126 Series

Download Datasheet Request Quote

Note : Your request will be directed to Bourns.

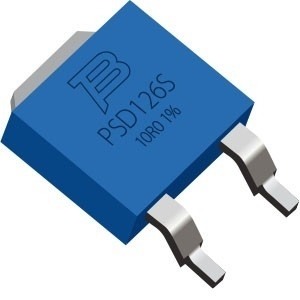

PSD126 Series Image

The PSD126 Series from Bourns is a Power Resistor with Resistance 0.025 to 10 kilo-ohm, Tolerance ±1 % to ±5 %, Power Rating 25 W, Temperature Operating Range -40 to 175 Degree C. Tags: Surface Mount. More details for PSD126 Series can be seen below.

Product Specifications

Product Details

  • Part Number
    PSD126 Series
  • Manufacturer
    Bourns
  • Description
    0.025 to 10 kOhm, ±1 % to ±5 %, Thick Film Power Resistor

General

  • Types of Power Resistor
    Thick Film Resistor View all
  • Industry
    Industrial, Commercial
  • Resistance
    0.025 to 10 kilo-ohm
  • Tolerance
    ±1 % to ±5 %
  • Power Rating
    25 W
  • Temperature Operating Range
    -40 to 175 Degree C
  • Package Type
    Surface Mount View all
  • Package
    TO-126
  • Dimension
    8.13 x 12.32 x 2.79 mm
  • Applications
    Power supplies, Stepper motor drives, Input amplifiers
  • Note
    Dielectric Withstanding Voltage :- 2000 VDC, Thermal Resistance :- 6.0 kW
