KABR60 10R J F

Note : Your request will be directed to Ohmite Manufacturing.

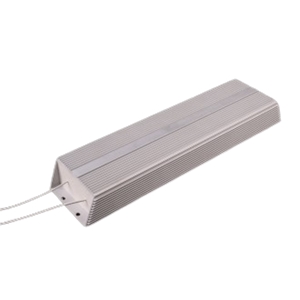

KABR60 10R J F Image

The KABR60 10R J F from Ohmite Manufacturing is a Wirewound Metal Clad Braking Resistor that is ideal for motor drives, braking, and snubber resistor applications. It has a resistance of 10 Ohms and a resistance tolerance of ±5 %. This power resistor has a power rating of 60 W. It offers excellent stability, reliability, and has a mechanically rigid metal enclosure for dynamic braking applications. This RoHS-compliant resistor is economical and compact and offers excellent load life stability. It is available in a screw-mount package that measures 115 x 40 mm.

Product Specifications

Product Details

  • Part Number
    KABR60 10R J F
  • Manufacturer
    Ohmite Manufacturing
  • Description
    10 Ohms Wirewound Metal Clad Braking Resistor

General

  • Types of Power Resistor
    Wirewound Resistor
  • Industry
    Industrial, Commercial
  • Resistance
    10 ohm
  • Tolerance
    -5 to 5%
  • Power Rating
    60 W
  • Temperature Operating Range
    -25 to 250 Degree C
  • Package Type
    Screw Mount
  • Dimension
    115 x 40 mm
  • Applications
    Motor drives, Braking, and Snubber Resistor Applications
