SBCHE11100RJ

Power Resistor by TE Connectivity (1107 more products)

Note : Your request will be directed to TE Connectivity.

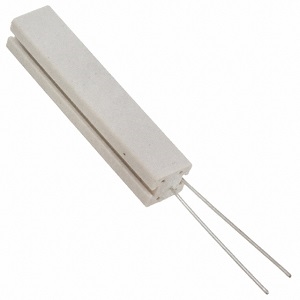

SBCHE11100RJ Image

The SBCHE11100RJ from TE Connectivity is a Wire-Wound Power Resistor that is ideal for industrial applications. It has a resistance of 100 ohms and a resistance tolerance of 5%. This resistor has a power rating of 11 W. It has a temperature coefficient of resistance of ±200 ppm/°C and operates over a temperature range from -55°C to +350°C. This RoHS-compliant power resistor is available in a through-hole package that measures 50 x 10 x 9 mm.

Product Specifications

Product Details

  • Part Number
    SBCHE11100RJ
  • Manufacturer
    TE Connectivity
  • Description
    100 Ohm Wire-Wound Power Resistor

General

  • Types of Power Resistor
    Wirewound Resistor
  • Industry
    Industrial, Commercial
  • Resistance
    100 ohm
  • Tolerance
    5%
  • Power Rating
    11 W
  • Temperature Operating Range
    -55 to 350 Degree C
  • Package Type
    Through Hole
  • Dimension
    50 x 10 x 9 mm
  • Note
    Passive Component Termination Material Type:- Tinned Copper Leads
