LS1024B

Solar Charge Controllers by EPEVER

Note : Your request will be directed to EPEVER.

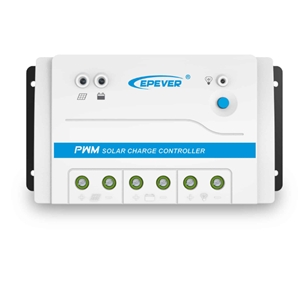

LS1024B Image

The LS1024B from EPEVER is a Solar Charge Controllers with System Voltage 12 to 24 V, Rated Current 10 A, Operating Temperature -35 to 50 Degree C. Tags: Pulse Width Modulation (PWM). More details for LS1024B can be seen below.

Product Specifications

Product Details

  • Part Number
    LS1024B
  • Manufacturer
    EPEVER
  • Description
    12 to 24 V, 10 A, PWM Solar Charger Controller

General

  • System Voltage
    12 to 24 V
  • Rated Current
    10 A
  • Type
    Pulse Width Modulation (PWM) View all
  • Battery Compatibility
    GEL, Flooded
  • Communication Interface
    RS485 Modbus
  • Protection Grade
    IP30
  • Dimension
    138.6 x 69.3 x 37 mm
  • Operating Temperature
    -35 to 50 Degree C
