SF 3500TL

Solar Charge Controllers by Helia Solar
11 more product from this company
Download Datasheet Request Quote

Note : Your request will be directed to Helia Solar.

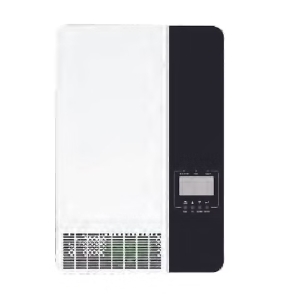

SF 3500TL Image

The SF 3500TL from Helia Solar is a Solar Charge Controllers with System Voltage 48 V, Rated Current 40 A, Power Rating 4500 W, Efficiency 90 %, Operating Temperature 0 to 50 Degree C. Tags: Maximum Power Point Tracking (MPPT). More details for SF 3500TL can be seen below.

Product Specifications

Product Details

  • Part Number
    SF 3500TL
  • Manufacturer
    Helia Solar
  • Description
    48 V, 40 A, MPPT Solar Charger Controller

General

  • System Voltage
    48 V
  • Rated Current
    40 A
  • Power Rating
    4500 W
  • Type
    Maximum Power Point Tracking (MPPT) View all
  • Battery Compatibility
    Li-ion, Lead-acid
  • Efficiency
    90 %
  • Protection Grade
    IP20
  • Dimension
    330 x 485 x 135 mm
  • Operating Temperature
    0 to 50 Degree C
